Show the code
# https://stackoverflow.com/questions/77809065/ggplot2-legend-icon-mismatch-for-horizontal-and-vertical-lines#77809293
# https://bookdown.dongzhuoer.com/hadley/ggplot2-book/legend-glyph.html
# https://ggplot2.tidyverse.org/reference/draw_key.html
# https://stackoverflow.com/questions/65798204/how-to-avoid-the-crossing-effect-in-legend-with-geom-vline-and-geom-hline-on-t
library(ggplot2)

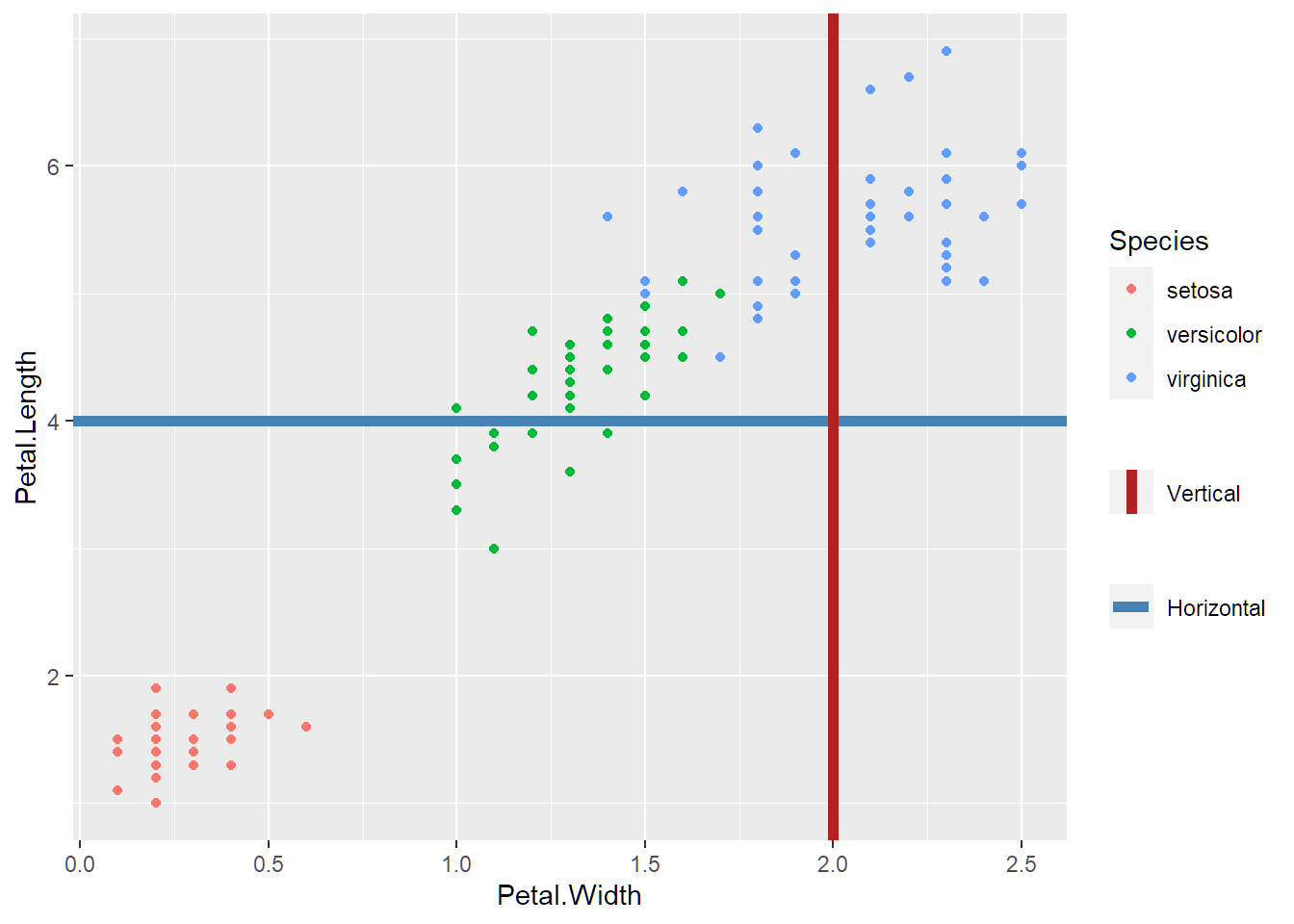

ggplot(iris, aes(Petal.Width, Petal.Length)) +
geom_point(aes(color = Species)) +
geom_hline(aes(yintercept = 4, lty = 'Horizontal'),
color = 'steelblue', lwd = 2, key_glyph = 'path') +
geom_vline(aes(xintercept = 2, linewidth = 'Vertical'),
color = 'firebrick', key_glyph = 'vline') +
guides(color = guide_legend(order = 1),
linewidth = guide_legend(title = NULL, order = 2),
linetype = guide_legend(title = NULL, order = 3))
Show the code
# OR
# library(ggplot2)
# glyph_vline <- function(data, params, size) {
# if (data$colour == 'firebrick') {
# draw_key_vline(data, params, size)
# } else {
# zeroGrob()
# }
# }
#
# glyph_hline <- function(data, params, size) {
# if (data$colour == 'steelblue') {
# draw_key_path(data, params, size)
# } else {
# zeroGrob()
# }
# }
#
# ggplot(iris, aes(Petal.Width, Petal.Length)) +
# geom_point(aes(color = Species)) +
# geom_hline(aes(yintercept = 4, lty = 'Horizontal'),
# color = 'steelblue', lwd = 2, key_glyph = glyph_hline) +
# geom_vline(aes(xintercept = 2, lty = 'Vertical'),
# color = 'firebrick', lwd = 2, key_glyph = glyph_vline) +
# scale_linetype_manual(name = "Lines", values = c("solid","solid")) +
# guides(lty = guide_legend(title = 'Lines',
# override.aes = list(color = c('steelblue', 'firebrick'),
# lty = c('solid', 'solid'))))
